Home /Compactor Parts /Electrical Parts /MOTORS /SINGLE PHASE MOTORS
Total Products: 11       Sort By

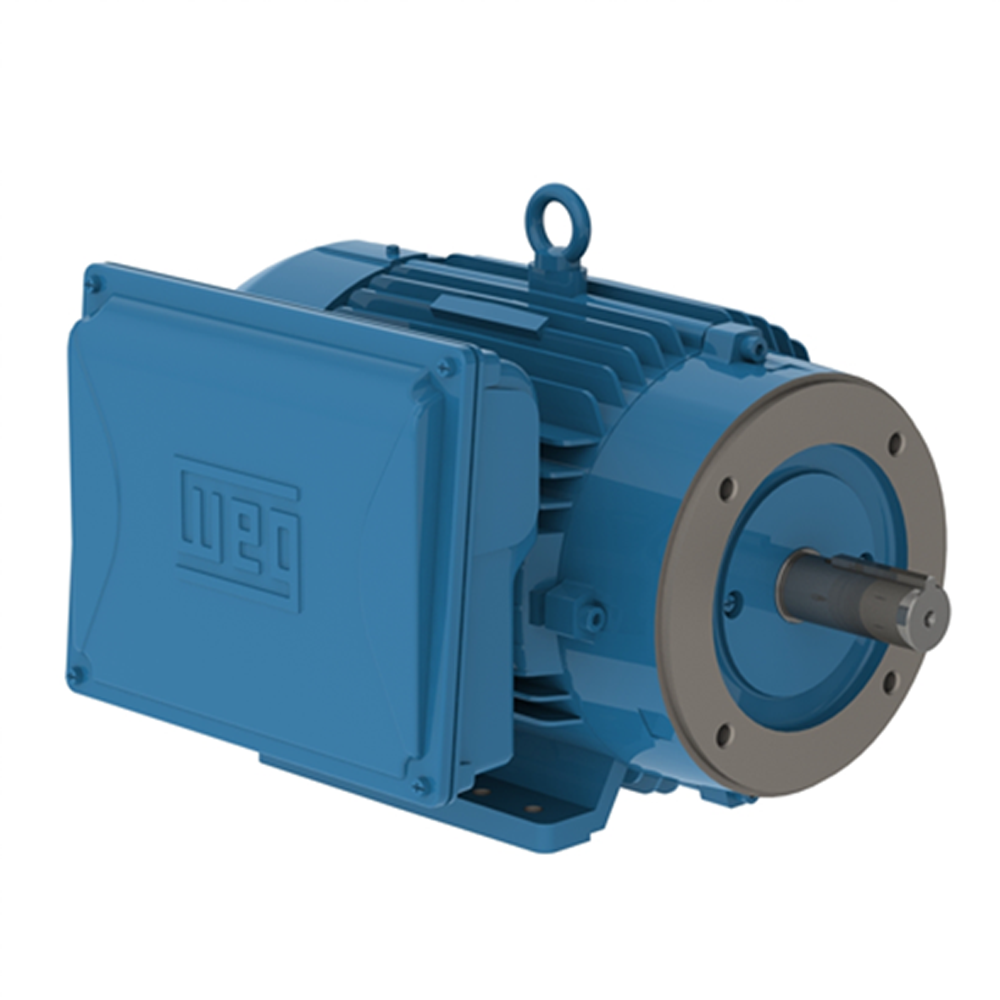

MOTOR SINGLE PHASE 10 HORSE POWER

MOTOR SINGLE PHASE 10 HORSE POWER
$1450.00
MOTOR SINGLE PHASE 10 HORSE POWER
Part # : C.MTR.1PH10HP
Weight: 131 LB
Any
WEG ONE-PHASE, TOTALLY-ENCLOSED, FAN-COOLED, 10 HP MOTOR. 1750 RPM. 215TC Frame. UL and CSA Listed.
BALDOR MOTOR SINGLE PHASE 10 HORSE POWER

BALDOR MOTOR SINGLE PHASE 10 HORSE POWER
$1750.32
BALDOR MOTOR SINGLE PHASE 10 HORSE POWER
Part # : C.MTR.1PH10HP.B
Weight: 171 LB
Any
NOT RETURNABLE
CL3712T
CRAM-A-LOT FAN, MOTOR 10HP AND 15HP

CRAM-A-LOT FAN, MOTOR 10HP AND 15HP
$150.00
CRAM-A-LOT FAN, MOTOR 10HP AND 15HP
Part # : C.MP.JV.112513
Weight: 0.5 LB
Any
NOT RETURNABLE
MOTOR SINGLE PHASE 5 HORSE POWER 184TC

MOTOR SINGLE PHASE 5 HORSE POWER 184TC
$934.00
MOTOR SINGLE PHASE 5 HORSE POWER 184TC
Part # : C.MTR.1PH5HP.184TC
Weight: 94 LB
Any
NOT RETURNABLE
BALDOR MOTOR SINGLE PHASE 5 HORSE POWER

BALDOR MOTOR SINGLE PHASE 5 HORSE POWER
$1027.30
BALDOR MOTOR SINGLE PHASE 5 HORSE POWER
Part # : C.MTR.1PH5HP.B
Weight: 102 LB
Any
NOT RETURNABLE
BALDOR MOTOR SINGLE PHASE 1 HORSE POWER

BALDOR MOTOR SINGLE PHASE 1 HORSE POWER
$754.00
BALDOR MOTOR SINGLE PHASE 1 HORSE POWER
Part # : C.MTB.CL3510
Weight: 49 LB
Any
NOT RETURNABLE
CRAM-A-LOT PROXIMITY SWITCH

CRAM-A-LOT PROXIMITY SWITCH
$479.90
CRAM-A-LOT PROXIMITY SWITCH
Part # : C.MP.JV.260031
Weight: 2 LB
Any
NOT RETURNABLE
MOTOR SINGLE PHASE 3 HORSE POWER

MOTOR SINGLE PHASE 3 HORSE POWER
$1681.55
MOTOR SINGLE PHASE 3 HORSE POWER
Part # : C.MTR.1PH3HP.B
Weight: 81 LB
Any
NOT RETURNABLE

Motor 1-phase 3 horse power

  • eHP/1-phase
  •
BALDOR 1PH 5 HP 3450RPM 60HZ

BALDOR 1PH 5 HP 3450RPM 60HZ
$1464.97
BALDOR 1PH 5 HP 3450RPM 60HZ
Part # : C.MTR.1PH5HP.B3
Weight: 92 LB
Any
NOT RETURNABLE
1/4" X 2.7" MOTOR INSERT KEY STOCK

1/4" X 2.7" MOTOR INSERT KEY STOCK
$0.00
1/4" X 2.7" MOTOR INSERT KEY STOCK
Part # : C.MTR.PRT.25IKEY
Weight: 0.01 LB
Any
NOT RETURNABLE
Suggested
POWER UNIT, PLC 3 PH 10 HP 12 GPM W/15' CNTRLS
Part # : A.PUX.LC.3.10

$2995.00

Any
4/36/2.5R/31.25 COMPACTOR CYL. (BY PASS)
Part # : C.CYL.436.BP

$528.00

Any
5/50/2.5R/42 COMPACT. CYL (BY-PASS)
Part # : C.CYL.550.BP

$1025.00

Any
AB 30MM CYLINDER LOCK PUSH BUTTON (KEY SWITCH) WITH GUARDED BEZEL WITH 2 NO
Part # : C.AB30.NX970

$103.90

Any
1.25" PIN FOR COMP. CYL - UNIVERSAL ADJ. (with COLLAR, SCREW & NUT)
Part # : C.CYL.PIN.9

$14.85

Multiples of 1 (500)

Single Phase Compactor Motors

Replacement single phase electric motors for industrial trash compactors. 5HP at 110V or 220V. Designed for vertical compactors, small commercial stationary units, and any installation without three phase electrical service. NEMA TEFC enclosures standard.

What this page covers

Single phase compactor motors run on standard residential or light-commercial electrical service. The maximum practical horsepower on single phase is 5HP — beyond that, three phase is required. That 5HP limit caps single phase use to vertical compactors (cardboard/recycling crushers) and small stationary commercial compactors.

PRT single phase motors are NEMA TEFC (Totally Enclosed Fan Cooled) — standard for compactor service because they tolerate the dust, debris, and occasional moisture exposure of waste-handling environments. Standard frames are 145T for 5HP at 110/220V.

How to choose

Choose 110V for compactors installed on standard household-style electrical circuits. Choose 220V for higher-amperage light commercial circuits. Frame size is typically 145T for 5HP single phase compactor motors.

Verify the existing motor's voltage at the data plate before ordering — running a 110V motor at 220V damages the windings instantly.

Single phase motor specs

  • 5HP 110V single phaseFor standard household-style commercial electrical service.
  • 5HP 220V single phaseFor higher-amperage light commercial service.
  • NEMA frame 145TStandard frame for 5HP compactor motors.
  • TEFC enclosureTotally Enclosed Fan Cooled — standard for compactor service environments.
  • Close-coupled and foot-mount versionsDirect-pump-mount or belt-drive options.

Frequently asked questions

What's the maximum horsepower for a single phase compactor motor?

5HP. Above that, the in-rush current at startup exceeds what single phase service can deliver. 10HP and up require three phase electrical service.

How much current does a 5HP single phase compactor motor draw?

At 110V, peak in-rush current is around 200A (with continuous duty around 50A). At 220V, peak is around 100A and continuous around 25A. Size the breaker for in-rush, not continuous.

Can a single phase motor run on three phase electrical service?

Not directly — the windings are different. If you have three phase service available, you'd run a dedicated single phase circuit to the compactor, or replace the motor with a three phase version.

What compactors use single phase 5HP motors?

Vertical compactors (the freestanding cardboard-and-recycling crushers in retail back rooms), small stationary commercial compactors (under 5-yard capacity), and most residential-adjacent installations.
